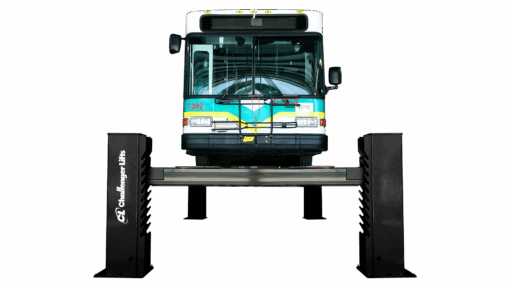

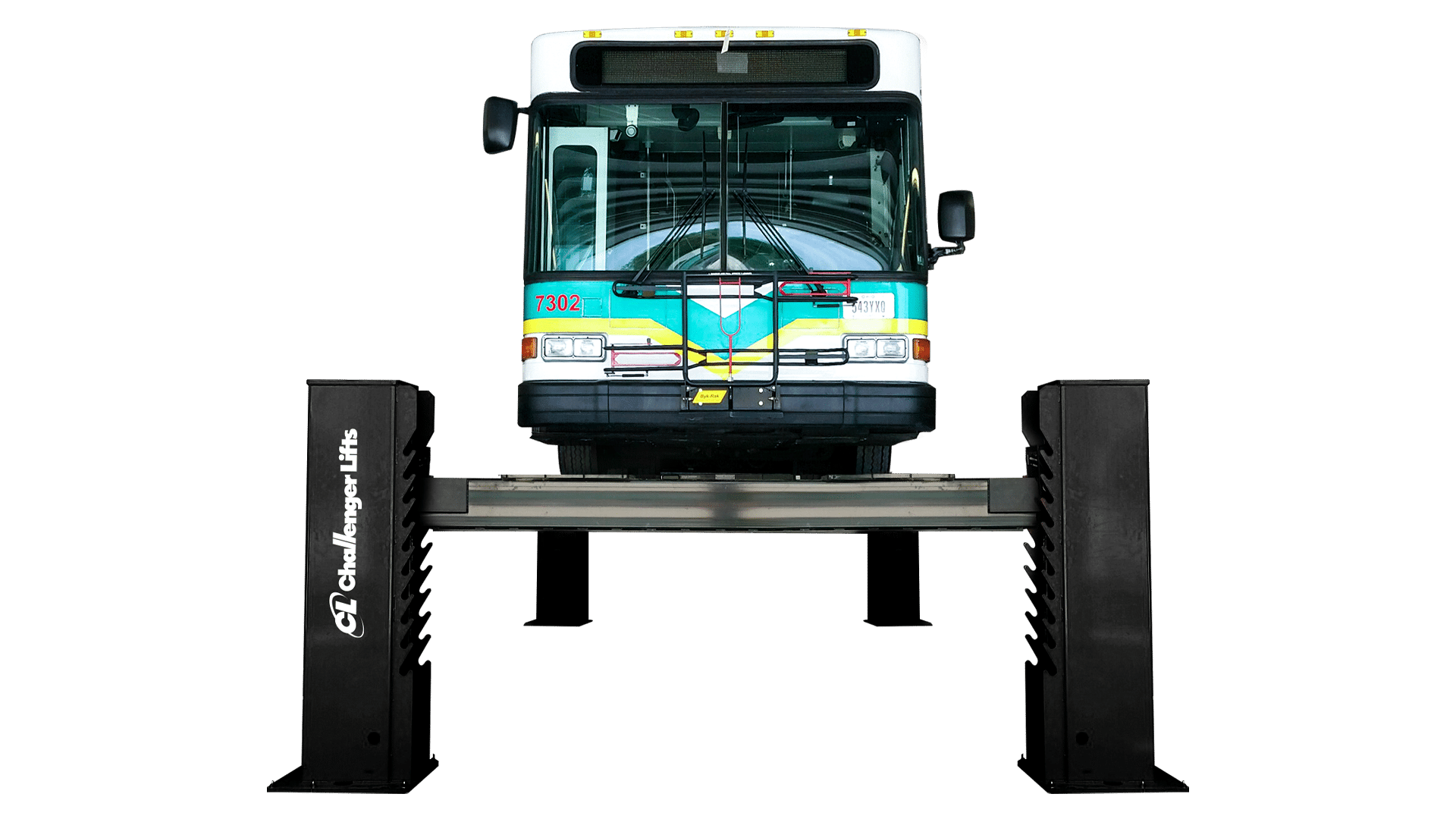

Heavy-Duty Chain-Driven 4-Post Lift

We designed our 30,000 lb. to 60,000 lb. lifts as an economic high-capacity lifting solution in a traditional 4-post design. Diamond-plated anti-skid runways and ramps provide for positive vehicle traction. The synchro-power system has dual heavy-duty lift cylinders as well as lever controls, which provide variable or synchronous power to the front and/or rear suspension of the lift, making it perfect for lifting large axle vehicles with heavier front or rear ends, including waste trucks and other construction trucks.

• 30,000 lb. to 60,000 lb. capacity 4-post
• 310” to 430” max wheelbase
• 32” wide runways aid for drive-on confidence
• 10 lock positions provide maximum headroom for working underneath vehicles (40 K- 60 K)
• Single-point air-actuated lock release allows technicians to disengage column locks simultaneously
• Diamond-plate approach ramps for positive vehicle traction
• Optional 15,000 lb. – 35,000 lb. rolling jacks provide complete optimization for your heavy-duty servicing needs
• Available with black columns only

• Model Number	44030	44040	44040E	44040X	44050	44050E	44050X	44060	44060E	44060X
  Lifting Capacity	30,000 lbs.	40,000 lbs.	40,000 lbs.	40,000 lbs.	50,000 lbs.	50,000 lbs.	50,000 lbs.	60,000 lbs.	60,000 lbs.	60,000 lbs.
  Max Wheelbase	230″	310”	370”	430”	310”	370”	430”	310”	370”	430”
  Rise Height	68″	73”	73”	73”	73”	73”	73”	73”	73”	73”
  Overall Length	24′ 7.5″	36′	41′	46′	36′	41′	46′	36′	41′	46′
  Overall Width	12′ 5.5″	17’ 1.25”	17’ 1.25”	17’ 1.25”	17’ 1.25”	17’ 1.25”	17’ 1.25”	17’ 1.25”	17’ 1.25”	17’ 1.25”
  Inside Columns	132.5″	144”	144”	144”	144”	144”	144”	144”	144”	144”
  Between Columns	233.75″	290”	350”	410”	290”	350”	410”	290”	350”	410”
  Height Overall	92″	92”	92”	92”	92”	92”	92”	92”	92”	92”
  Height of Runways	9″	14”	14”	14”	14”	14”	14”	14”	14”	14”
  Width of Runways	24″	32”	32”	32”	32”	32”	32”	32”	32”	32”
  Width Between Runways	54″ – 75″	36” – 58”	36” – 58”	36” – 58”	36” – 58”	36” – 58”	36” – 58”	36” – 58”	36” – 58”	36” – 58”
  Width Between Runways with jacks	NA	43″ – 53.5″	43″ – 53.5″	43″ – 53.5″	43″ – 53.5″	43″ – 53.5″	43″ – 53.5″	43″ – 53.5″	43″ – 53.5″	43″ – 53.5″
  Motor / Voltage	3HP, 208-230v Single Phase	10HP, 230 – 460v Three Phase	10HP, 230 – 460v Three Phase	10HP, 230 – 460v Three Phase	15HP, 230 – 460v Three Phase	15HP, 230 – 460v Three Phase	15HP, 230 – 460v Three Phase	15HP, 230 – 460v Three Phase	15HP, 230 – 460v Three Phase	15HP, 230 – 460v Three Phase
  Amps	30	28 – 14	28 – 14	28 – 14	42 – 21	42 – 21	42 – 21	42 – 21	42 – 21	42 – 21
  Speed of Rise	105 s	70 s	70 s	70 s	70 s	70 s	70 s	70 s	70 s	70 s
  Colors Available	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
