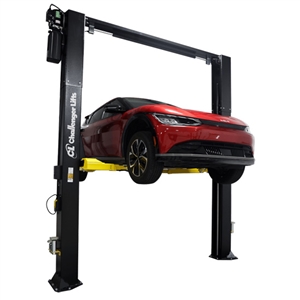

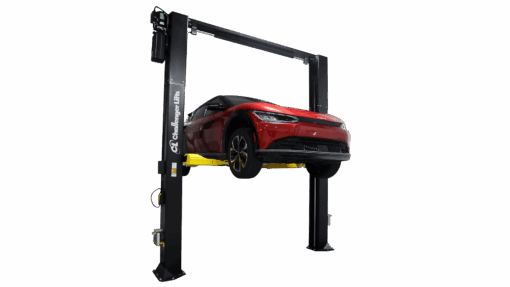

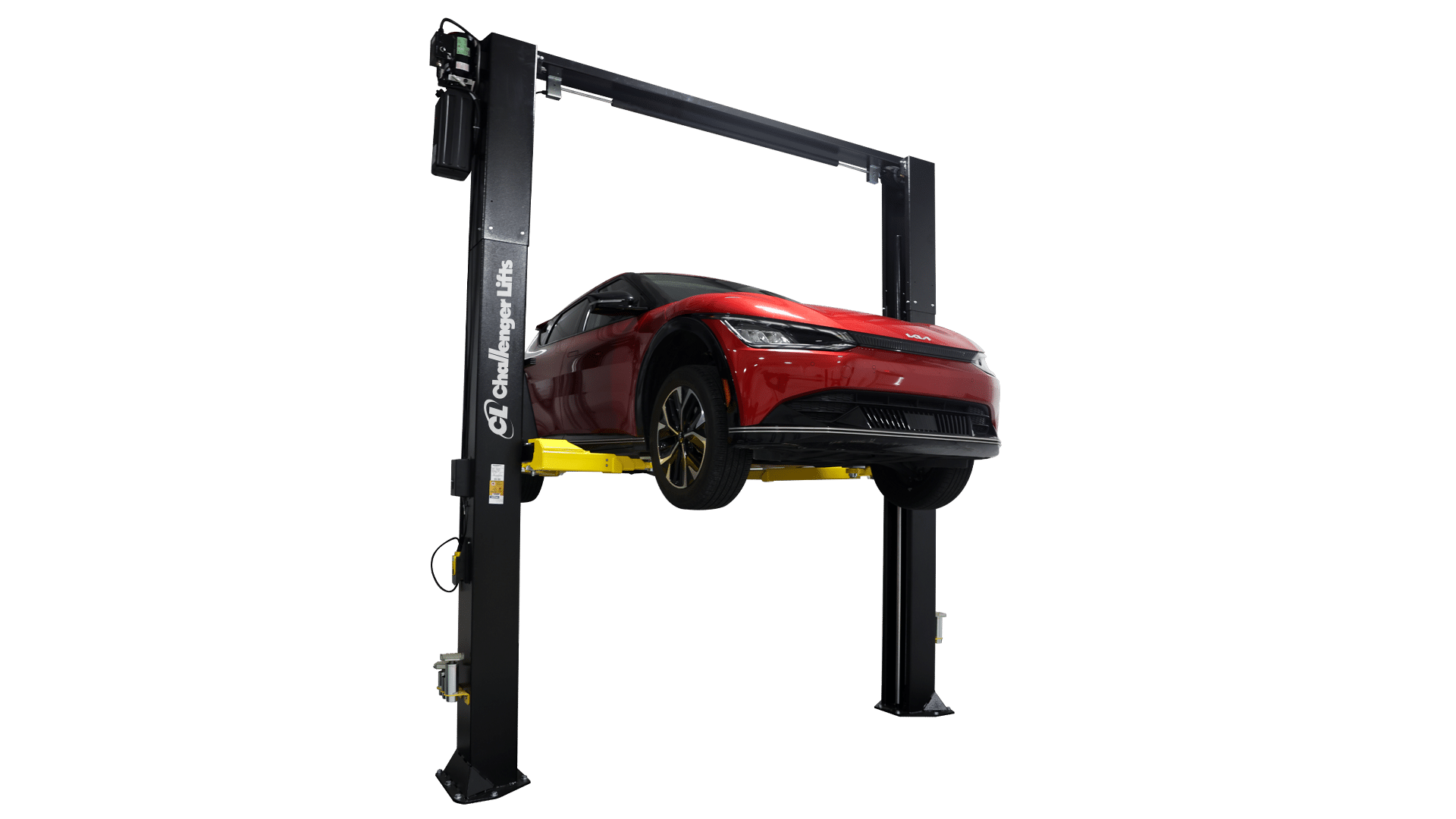

10K Versymmetric Two-Post Adjustable Lift

Challenger Series ALI Adjustable Two Post Car Lift 10K

In today’s fast-paced automotive service industry, efficiency and versatility are paramount. That’s where our Challenger Series ALI Adjustable Two Post Car Lift 10K, featuring our exclusive Versymmetric technology, truly shines. This innovative technology allows you to service the broadest range of vehicles, significantly enhancing your shop’s capability and, most importantly, your bottom line. With its 3-stage front and rear arms equipped with the pioneering directSPOT design, the days of shuffling a vehicle back and forth to position the front arm properly are over. Now, you can achieve accurate first-try spotting every time, skyrocketing your productivity.

The CL10AV3 comes in various configurations tailored to meet your specific service needs. For shops prioritizing speed, our drive-on pad option ensures the quickest vehicle spotting, ideal for express service lanes. Meanwhile, our QuickCycle upgrade redefines efficiency, boasting an astonishing lift speed, rising in just 27 seconds and descending in 17 seconds. This impressive speed propels your service capabilities to new heights and allows your team to handle more vehicles, enhancing customer satisfaction and your shop’s reputation.

Understanding that one size does not fit all, we’ve made adjustable height and width options, ensuring the CL10AV3 can adapt to your shop’s unique requirements. Furthermore, a wide selection of accessories means that no matter what challenges you face, the CL10V3 is equipped to tackle them, making it the definitive choice for any forward-thinking shop.

Choose the CL10AV3 and expand your service potential with our most versatile, easy-to-operate lift. Proudly ALI Certified, it’s not just an investment in equipment but an investment in your shop’s future, promising reliability, safety, and unmatched performance.

Features

• 10,000 lbs.. lift capacity
• Versymmetric offset front arms provide direct SPO to vehicle lift points and safely lift both symmetrically and asymmetrically within the same service bay, maximizing service capabilities and revenue potential
• Oversized 5″ diameter pulley and heavy-duty 5/16″ cable reduce stress on the qualification system and increase cable life
• 48″ elongated carriage design increases lift life
• Three settings for width adjustment, from 11′ 6.5″ to 12′ 6.5″
• Adjustable Configurations
  • Narrow: Space Constraints or Express Pads configuration
  • Universal: Cars, SUVs, Trucks, Most Electric Vehicles
  • Wide: Optimal for Cars, EVs, and Luxury vehicles
• The standard model fits 12 12-foot ceiling height. Additional 2-foot or 3-foot extensions available
• Padded overhead shut-off system prevents vehicle damage
• Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
• Fully gusseted base plate design increases column rigidity
• Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
• Premium powder coat finish provides long-lasting durability

• Model Number	CL10AV3	CL10AV3-DPC	CL10AV3-QC	CL10AV3-DPC-QC
  Lifting Capacity	10,000 lbs.	10,000 lbs.	10,000 lbs.	10,000 lbs.
  Lift Configuration	Standard	Dual Pendant Controls	QuickCycle	Dual Pendant Controls & QuickCycle
  Arms	3-stage front/3-stage rear	3-stage front/3-stage rear	3-stage front/3-stage rear	3-stage front/3-stage rear
  Rise Height	74.125”	74.125”	74.125”	74.125”
  Overall Height	11′ 2″ or 11′ 8″	11′ 2″ or 11′ 8″	11′ 2″ or 11′ 8″	11′ 2″ or 11′ 8″
  Overall Height (Cylinder Extended)	11′ 11″	11′ 11″	11′ 11″	11′ 11″
  2’ Height Extension Available	Yes	Yes	Yes	Yes
  3’ Height Extension Available	Yes	Yes	Yes	Yes
  Overall Width	11′ 6.5″ / 12′ .5″ / 12′ 6.5″	11′ 6.5″ / 12′ .5″ / 12′ 6.5″	11′ 6.5″ / 12′ .5″ / 12′ 6.5″	11′ 6.5″ / 12′ .5″ / 12′ 6.5″
  Drive-Thru Clearance	100″ / 106″ / 112″	100″ / 106″ / 112″	100″ / 106″ / 112″	100″ / 106″ / 112″
  Floor to Overhead Switch	10′ 8.5″ – 11′ 2.5″	10′ 8.5″ – 11′ 2.5″	10′ 8.5″ – 11′ 2.5″	10′ 8.5″ – 11′ 2.5″
  Front Arm Reach	20” – 42”	20” – 42”	20” – 42”	20” – 42”
  Rear Arm Reach	37.625” – 60”	37.625” – 60”	37.625” – 60”	37.625” – 60”
  Screw Pad Height	3.875” – 6.125”	3.875” – 6.125”	3.875” – 6.125”	3.875” – 6.125”
  Inside Columns	110″ / 116″ / 122″	110″ / 116″ / 122″	110″ / 116″ / 122″	110″ / 116″ / 122″
  Motor / Voltage	2HP, 208v-230v, 60Hz, 1Ph	2HP, 208v-230v, 60Hz, 1Ph	3HP, 208v-230v, 60Hz, 1Ph	3HP, 208v-230v, 60Hz, 1Ph
  Speed of Rise	38 s	38 s	27 s	27 s
  Ceiling Height Required	12′	12′	12′	12′
  ALI/ETL Certified	Yes	Yes	Yes	Yes
  Colors Available	Red, Blue, Black	Red, Blue, Black	Red, Blue, Black	Red, Blue, Black
