Valve – Robo Arm
$199.00 – $229.00
Coats handle valve used to control the Robo arm for the 70-series. For 8183642
Used on the following models:
- APX80, APX90
- 7060 Limited Edition, 70-EH1, 70-AH1, 70-AH2, 70-AH3, 70-EH1, 70-EH2, 70-EH3
- For older 7060 models that require PN 8183642 simply flip handle 180 degrees by removing the 4 alan bolts an flipping the handle bracket then reinstall.

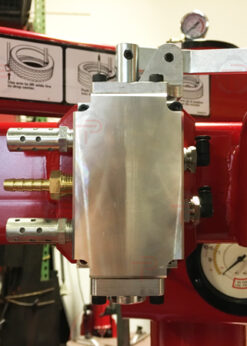

Robo Arm Valve
New replacement robo arm valve found on the Coats Rim Clamp 7060, 7060 Limited Edition, and new 70X-Series tire changers. This valve also is for the APX assist arms. This valve is a 3 position center spring valve. This valve controls the up and down movement of the robo arms. Pulling the lever up will release air to the up direction, pulling the lever down will push air to the down ward position. Releasing the lever will toggle the valve back to the neutral position, not allowing the air to release for either direction.
For older 7060 models that require PN 8183642 simply flip handle 180 degrees. This is done by removing the 4 set screws that secure the lever to the bracket and turning the handle bracket 180 degrees, then reinstall the set screws.
| Style | Valve Alone, Valve with Fittings |
|---|
