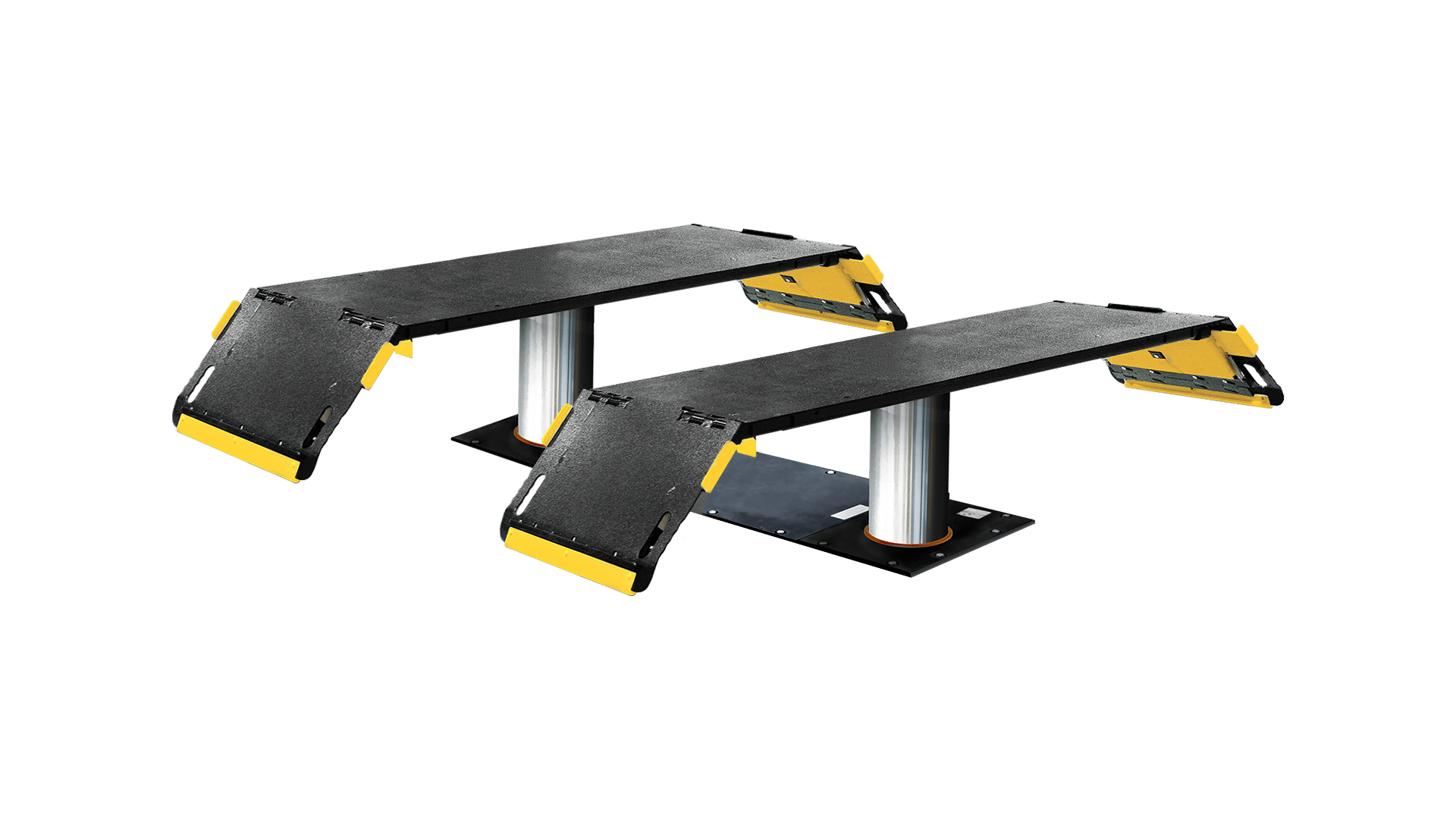

9K Inground Drive-On Pad Lift
Challenger’s 9,000-lb. Drive-on-style pad aids in quick vehicle spotting in express bays. This add-on configuration provides the quickest vehicle loading, reducing frustration in shops.
ALI/ETL certified.
| Model Number | EV1020 | EV1020-QC | EV1020XP9 | EV1020XP9-QC |
|---|---|---|---|---|
| Lifting Capacity | 10,000 lbs. | 10,000 lbs. | 9,000 lbs. | 9,000 lbs. |
| Arms | 3-stage front/3-stage rear | 3-stage front/3-stage rear | n/a | n/a |
| Stroke | 68” | 68” | 68” | 68” |
| Rise Height | 74” | 74” | 70” | 70” |
| Width Overall | 97″ | 97″ | 79.75” | 79.75” |
| Drive-Thru Clearance | 87” | 87” | – | – |
| Reach (Arm Minimum) | 19.625” | 19.625” | – | – |
| Reach (Arm Maximum) | 42.125” | 42.125” | – | – |
| Screw Pad Height | 3.875” – 6” | 3.875” – 6” | Minimum Pad Height: 2.25″ | Minimum Pad Height: 2.25″ |
| Capacity | 2,500 lbs. per arm | 2,500 lbs. per arm | 4,500 lb. per pad | 4,500 lb. per pad |
| Guide Plunger Diam. | 8.5” | 8.5” | 8.5” | 8.5″ |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38 s | 27 s | 38 s | 27 s |
| Air Required | 90 – 120 psi | 90 – 120 psi | 90 – 120 psi | 90 – 120 psi |
| ALI/ETL Certified | Yes | Yes | Yes | Yes |
| Super Structure Colors | Red, Blue, Black | Red, Blue, Black | Black | Black |
Optional Accessories and Upgrades
| Mode | EV1020, EV1020-QC, EV1020XP9, EV1020XP9-QC |
|---|
