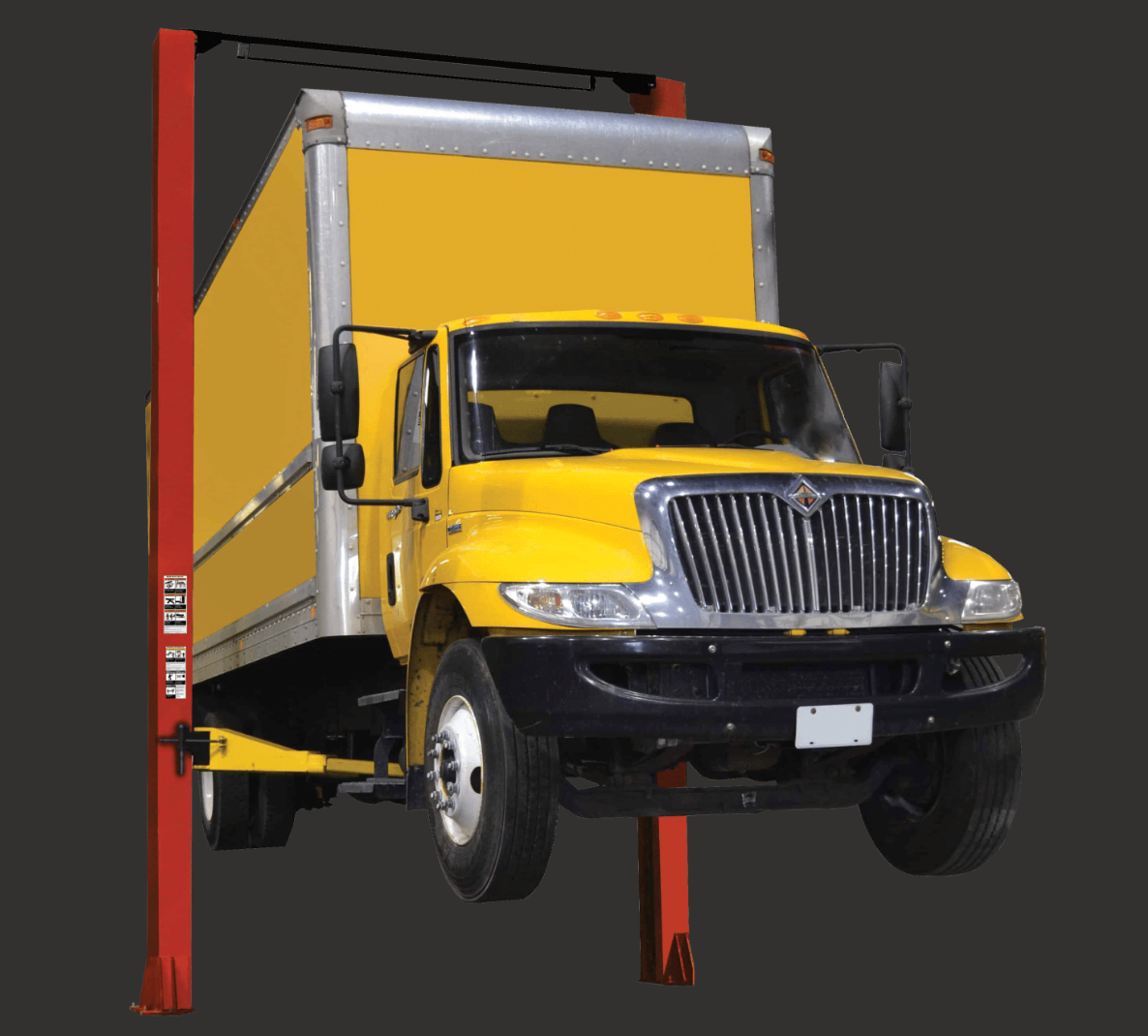

Coats 16K 2N1 Post Lift
The Coats 16K 2N1 Post Lift Reduces Vehicle Set Up Time. Drop-in stacking adapters can extend this “drop-in” style steel saddle lift. The 3/8″ Non-Fatigue Cables with 3.5″ Pulleys make the lift last longer with less maintenance. The self-activating arm restraints last longer with less sag and lower maintenance. The power unit can be installed on either side. An air release mechanical locking system with stainless steel air cylinders includes a built-in air regulator. Our Heavy-Duty 2 Post lifts are suitable for vehicles with a curb weight of 20,000 lb or less, with the weight evenly distributed on each lifting arm. The 16K and 20K models come with various adapters included with each lift to get started right after installation. For structural integrity, the 199 1/2” single-piece columns can be specially ordered to fit your ceiling height. U.S.-made Bucher 4HP power unit is designed for greater performance and low noise levels at max power. With a 62” reach, our arms are better designed to reach challenging lift points with lowered pad heights to assist. Heavy-duty arm restraints are more stable under heavy or uneven loads when supporting larger capacity vehicles. A larger and irregularly shaped base plate is
17” x 31” and is 1” thick to create greater stability and reduce floor stress. A single-point locking system with filter, regulator, and lubricator is for precise locking and protection from contaminants. The 106 1/2” drive-thru width between
Columns accommodate larger, wider trucks. Heavy-duty columns have a premium double-baked, powder-coated finish to withstand the harshest working environments. With adapters, the 16K raises to a height of 87
1/2” (85 1/2” for 20K) to give you even more under-car working height. Self-lubricating bronze bushings and large diameter cables reduce maintenance costs.
