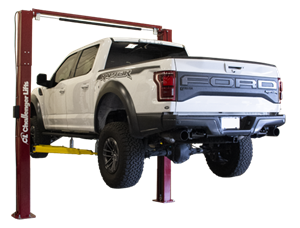

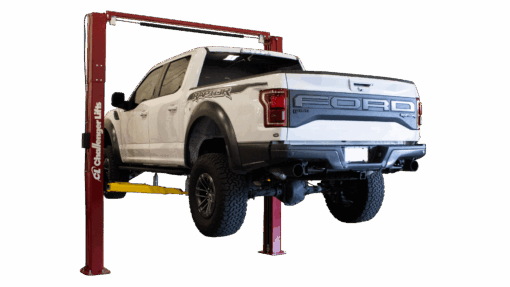

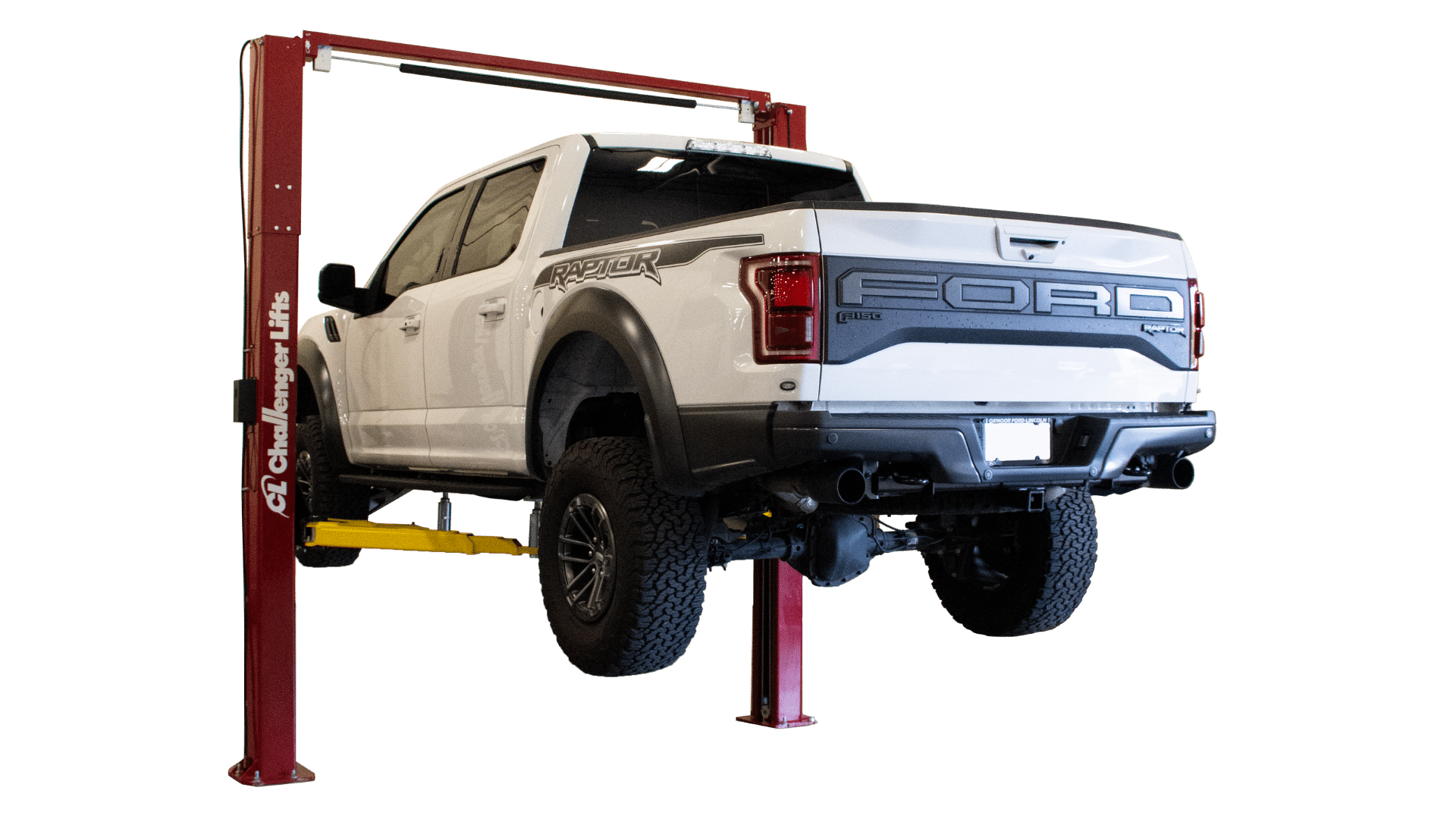

10K Versymmetric VLE Two-Post Lift
The 10K Versymmetric VLE Two-Post Lift Versymmetric technology brings flexibility to any service bay while also ensuring the safe lifting of any vehicle. Versymmetric lift technology, established in 1992 by Challenger, combines a Symmetric and an Asymmetric lift into one!
Our Versymmetric lifts safely accommodate vehicles from compact cars to full-size trucks by using heavy-duty columns and arms. Thus, you can service a wide range of vehicles from the same service bay.
Whether you’re looking for efficiency or simply short on space, this Challenger Lift is right for you.
- Challenger’s Versymmetric Technology, with a 3-Stage offset front arm design, allows for the safe symmetric lifting of trucks or asymmetric lifting of other small vehicles within the same service bay.
- Direct Spot Technology, created by the Versymmetric offset arms, allows you to save time on spotting a short wheelbase vehicle by eliminating the need to struggle with the tires.
Any Vehicle. One Bay.
The left image shows a standard passenger car best lifted asymmetrically to allow the technician easy access to the car’s interior. The right image shows a truck with a possible “load” in the back. This type of vehicle lifts best symmetrically as the front arms position forward, distributing the weight evenly between the two columns. While each image demonstrates a different way of lifting, with Versymmetric, both methods are possible, all from one bay.
Features
- 3-Stage Versymmetric front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay.
- 11.875” standard height fits in service bays with 12’ ceiling height.
- Double telescoping screw pads with rubber foot pad.
- Padded overhead shut-off system prevents vehicle damage.
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts is now standard on the VLE10.
- Rubber door guards protect the vehicle from door damage.
- Premium powder coat finish provides long-lasting durability.
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
Lifting Capacity | 10,000 lbs |
---|---|
Lift Configuration | Symmetric and Asymmetric |
Arm Configuration | 3-Stage Versymmetric® Front/2-Stage Rear |
Max Load Per Arm | 2500 lbs |
Rise Height (screw pads at highest position) | 74.75″ |
Overall Height | Standard: 143.875″ Extended Height: 167.875″ |
Overall Width | 131.625″ |
Drive-Thru Clearance | 98.375″ |
Floor to Overhead Switch | Standard: 137″ Extended Height: 161″ |
Front Arm Reach | 22.3125″-39.375″ |
Rear Arm Reach | 38.375″-55.375″ |
Screw Pad Height | 4.25″-6.75″ |
Between Columns | 110.25″ |
Motor/Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
Rise Time | 44s |
Ceiling Height Required | Standard: 12′ Extended Height 14′ |
