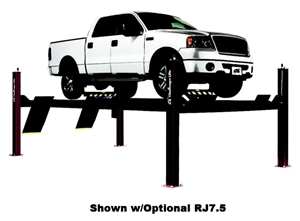

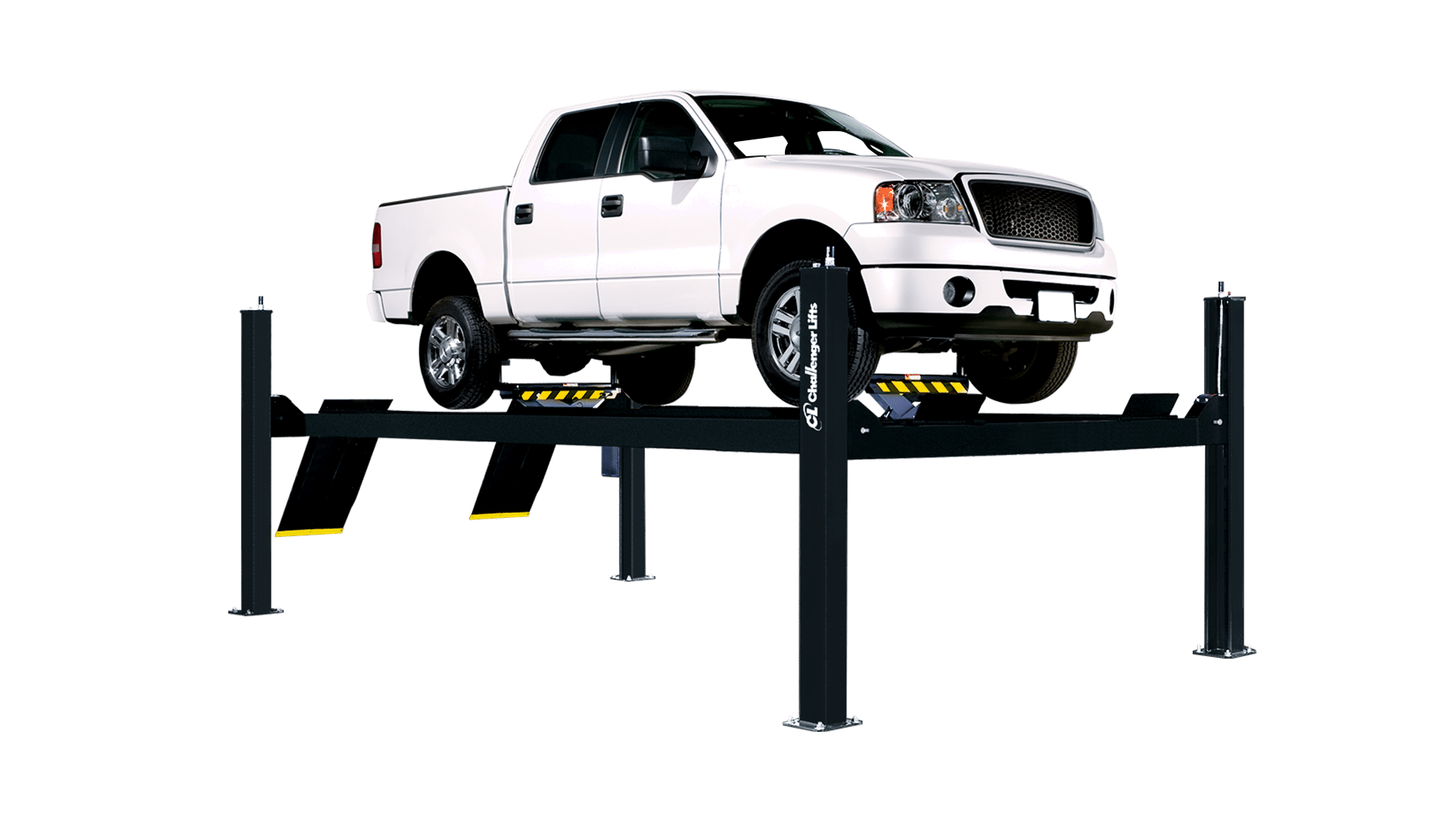

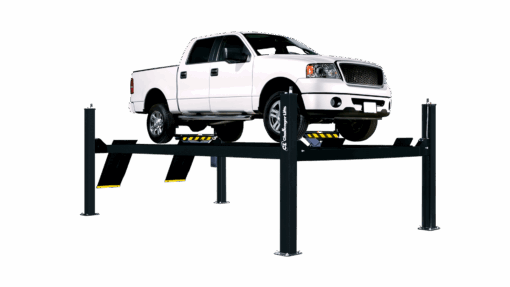

14K 4-Post General Service Lift / Optional Alignment

14K 4-Post General Service Lift / Optional Alignment

$9,897.74 – $10,461.69

78″ rise height provides more working room underneath vehicles
Louvered approach ramps for positive vehicle traction
Solid piece column construction provides rigidity and stability for rigorous servicing needs

SKU: 4P14 Categories: 4 Post, Challenger Lifts Tags: 14K, 4P14, Challenger, Lift

Description
Additional information

14K 4-Post General Service Lift / Optional Alignment

The Challenger 14K 4-Post General Service Lift / Optional Alignment economy four-post car lifts are loaded with features you would expect to pay more for, like louvered approach ramps, solid piece column construction, automatic wheel stops, and the highest rise in the industry.

With optional rolling jacks, oil drain pan, etc., you’ll be able to accommodate just about anything that comes in for service and afford room to grow with its reasonable cost. Turn your 4P14 general service four-post car lift automotive lift into a wheel alignment capable alignment rack. Our optional bolt-on alignment kit with stainless steel turning radius gauges, Part #40200-3DS, S is 3D alignment capable, offering an economy option to perform fast and profitable wheel alignment work.

4P14EFX and 4P14XFX hydraulic vehicle lifts are available in red and blue only.

Features

78″ rise height provides more working room underneath vehicles
Louvered approach ramps for positive vehicle traction
Solid piece column construction provides rigidity and stability for rigorous servicing needs
Oversized solid machined steel pulleys for prolonged pulley and cable life
Adjustable runways to accommodate a variety of tread widths
A hydraulic cylinder is mounted underneath the runway
14 level locking positions for a variety of general service tasks
An optional bolt-on alignment kit converts a general service application into an alignment rack
Many accessories are available, such as air/electric workstation, rolling jacks, and oil drain pan, making Challenger 4-posts a complete productivity center

Model Number	4P14EFX	4P14XFX
Lifting Capacity	14,000 lbs.	14,000 lbs.
Open or Closed Front	Closed	Closed
Max. Wheelbase	182.5”	210”
Rise Height	78”	78”
Overall Length	245.75”	273.25”
Overall Width	130.75”	130.75”
Inside Columns	116”	116”
Between Columns	196”	223.5”
Height of Columns	90.5”	90.5”
Width of Runways	20”	20”
Height of Runways	7.25”	7.25”
Width Between Runways	40” / 43”	40” / 43”
Air Supply Required	90-120 psi	90-120 psi
Motor / Voltage	2HP, 208v-230v, 60Hz, 1Ph	2HP, 208v-230v, 60Hz, 1Ph
Speed or Rise	90 s	90 s
Min. Recomm. Bay Size	12’ x 24’	12’ x 26’
ALI/ETL Certified	Yes	Yes
Color Available	Black	Black
