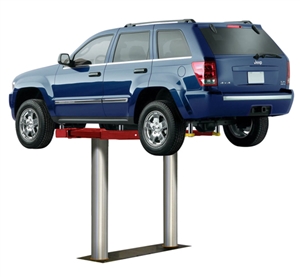

The EV1220 in-ground vehicle lifts are equipped with standard, medium, and high extension stack adapters to accommodate a wide variety of Heavy-Duty vehicle lift points. Challenger Heavy-Duty Inground Vehicle Lifts are fully contained in a recycled polymer housing to protect your investment and the environment.
Challenger’s electric hydraulic cassette style inground EnviroLift meets the rigorous demands of professional service facilities. With over 50% more bearing contact surface than competitor’s lifts, enhanced wipers both top and bottom and larger 8-1/2” chrome pistons, your shop will have a superior, more stable, and repeatable lift resulting in increased productivity. These inground lifts also eliminate environmental concerns with a fully contained polymer housing made from recycled plastic.
EnviroLifts require less shop space than surface mounted lifts. With a smaller footprint, your shop will maximize the number of service bays, resulting in higher parts and service revenue. EnviroLift also creates a professional showroom style appearance with its open, aesthetically pleasing look.
2-Stage Arms
The 2-stage front and rear swing arms with standard combination stack screw pads to accommodate a wide range of heavier vehicle lift points.
Other standard features include a mechanical locking ladder that engages every 3” and a stainless steel air lock release cylinder to prevent rust associated with condensation. Available in 10,000, 12,000, and the exclusive 15,000 lb. lift capacity.
Features
- 12,000 lb. lift capacity
- New increased rise height, giving technicians more under-car clearance.
- Increased the stroke height from 68″ to 72″
- Increased height from 74″ to 78″
- 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks within the service bay, maximizing revenue potential
- 8 1/2″ diameter chrome pistons provide greater stability under load
- Chrome non-breathing ram-style cylinder provides for longer lift life
- Enhanced raised wiper at the top and bottom of the bearing provides better grease retention and minimizes contaminants from entering into bearings
- Long bearing contact provides increased stability
- Mechanical lock engages every 3?, allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
- Fully-contained and sealed recycled polymer cassette tub eliminates the risk of hydraulic fluid seeping into the ground
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
- 87″ drive-thru accommodates wider vehicles, minimizes tire damage, and provides for easy drive-on
- Wide range of upgrades to further customize your fleet
- Premium powder coat finish on bolsters and arms provides long-lasting durability
Stack Adapter Extension Kit P/N 10315
Stack Adapter Kit for 10,000 and 12,000 lb. two-post and inground car and truck lifts. Drop-in style stack adapters help reach pickup points on vehicles with running boards or side steps. Simply take out the screw pad, drop in the stack adapter extension and replace screw pad to reach lifting points. Stack Adapter Extension Kit includes four 3″ Stack Extensions, two 6″ Stack Extensions & two Organizer Racks with hardware. Organizer racks mount to automotive lift column to keep adapters within reach. Works with all Challenger two-post automotive lifts.
Four-Frame Engaging Truck Adapters P/N 10318
Set of 4 frame-engaging truck adapters for 10,000, 12,000, 15,000, and 18,000 two-post automotive lifts. Frame-engaging adapters are ideal for lifting vehicles such as pickup trucks with frames. They provide direct contact to frames without the slipping associated when lifting on slippery, sprayed undercoatings with traditional rubber pads. Cradle provides a secure fit to frame in tight spaces. Works with all Challenger above-ground two-post lifts. 15,000 & 18,000 two-post automotive lifts require a reducer bushing kit part #10317.
